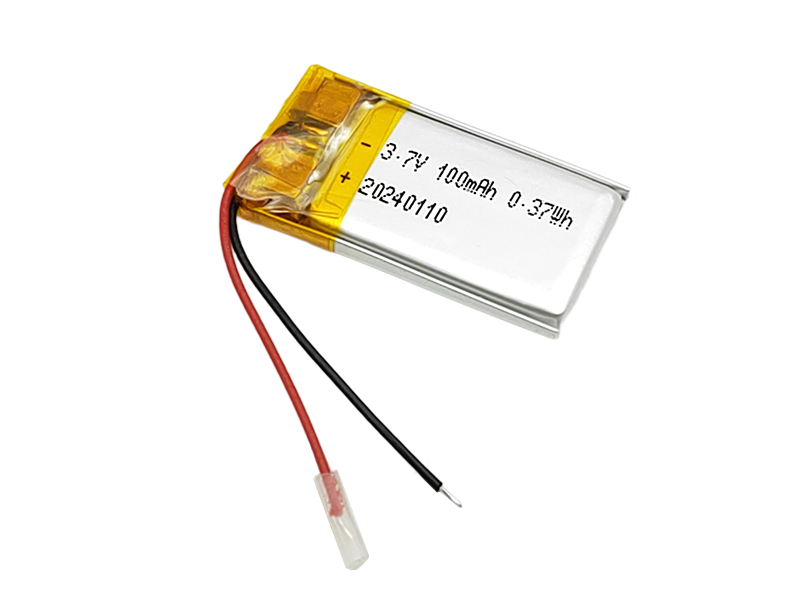

3.7V polymer lithium battery Model: XL 100mAh 3.7V
3.7V polymer lithium battery technical parameters (specific can be designed according to customer requirements - voltage/capacity/size/line)
Battery model: 301520
· Single battery voltage: 3.7V
· Nominal voltage after battery pack combination: 3.7V
· Single battery capacity: 100mAh
· Battery combination: 1 series and 1 parallel
· Battery voltage range after combination: 3.0V~4.2V
· Combined battery capacity: 100mAh
· Battery power: 0.37W
· Battery pack size: 3.0*15.5*23mm
· Maximum discharge current: <0.1A
· Instant discharge current: 0.2A~0.3A
· Maximum charging current: 0.2-0.5C
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
3.7V polymer lithium battery
· Meet the relevant national standards and requirements for batteries
· All finished batteries have been corrected and tested before delivery. It can be used directly
